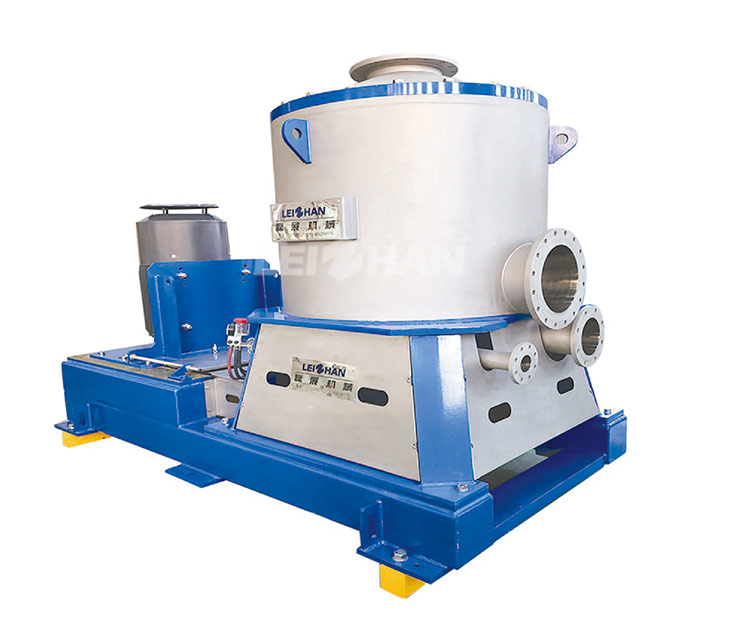

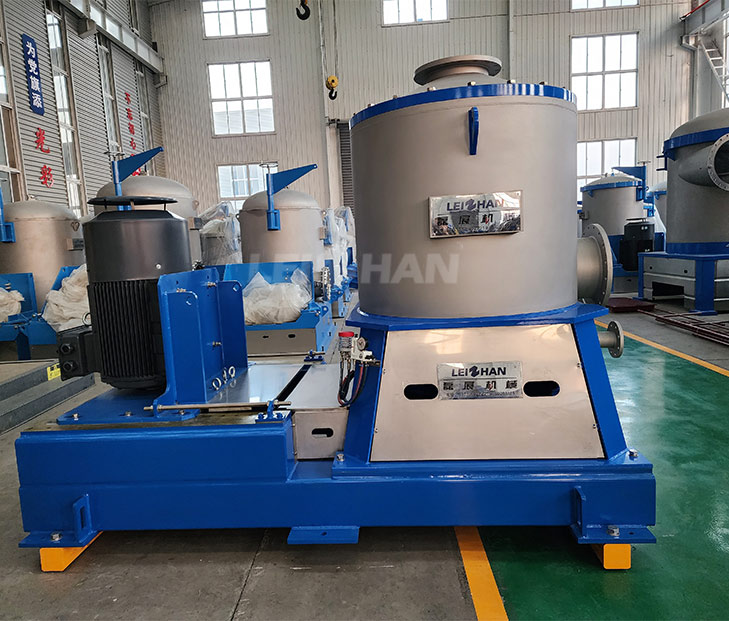

XZNS Series New Mid-Consistency Pressure Screen-Zhengzhou Leizhan Technology Paper Machinery Co., Ltd.

Features

Pulp enters from the top of the pressure screen, By gravity to effectively remove heavy impurities, reduce wear on the rotor and screen basket, and prolong the service life;
Improve the screening efficiency, better removal of stickies;
Significantly reduce energy consumption, energy saving up to 25%;
Further optimization of screen basket size, stronger adaptability, lower thickening coefficient, can effectively reduce fiber loss and reduce the possibility of clogging;
Wider application, suitable for various raw materials;
Easier maintenance and less unplanned downtime.

Technical Data

Model		XZNS0.5	XZNS0.9	XZNS1.5	XZNS2.3	XZNS3.5	XZNS4.7
Norminal are(㎡)		0.5	0.88	1.49	2.3	3.53	4.67
Screen hole size(mm)		Φ1.6-Φ3.5
Screen slot size(mm)		0.1-0.65
Production capacity(T/D)	Coarse screen	90-160	135-250	200-380	260-500	400-700	500-1000
Production capacity(T/D)	Fine screen	20-100	30-150	50-230	70-300	100-450	120-700
Inlet consistency (%)		1-4
Motor Power(kw)		11-45	22-75	30-110	45-160	55-250	90-355
