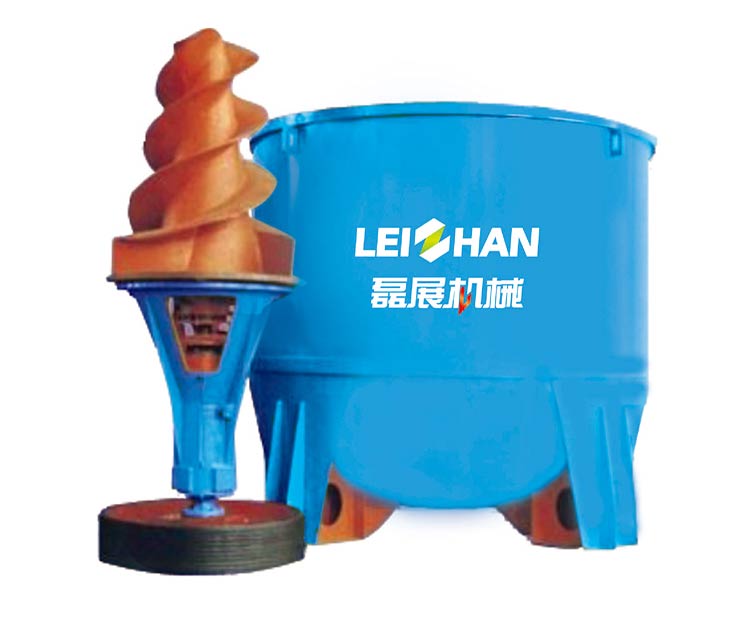

ZDSG H.C Hydrapulper

ZDSG H.C Hydrapulper
ZDSG H.C Hydrapulper
ZDSG H.C Hydrapulper
ZDSG H.C Hydrapulper

Application & Feature

  • Mainly used for separating waste paper and ink under high consistency in waste paper deinking process.
  • Special spiral rotor effectively promote the circulation and rollover of pulp, reinforce friction between fibers. Finally achieve gentle pulp under high consistency,impurities will not be broke in the process of fiber relief and deinking.
  • Dealing with 12%-18% high consistency pulp, effective chemical mixture and friction between fibers under high consistency make the ink particle separate from the surface of fiber fully.
    Compact structure, convenient operation and maintenance.

Main Specification

Type

ZDSG5

ZDSG10

ZDSG15

ZDSG20

ZDSG25

ZDSG30

ZDSG35

Normal Volume(m3)

5

10

15

20

25

30

35

Consistency (%)

10-15

Production Capacity(t/d)

20-25

40-50

60-70

80-100

130-185

160-225

185-260

Motor Power(kw)

110

220

315

400

450

500

560
